Anti-Galectin 1 Picoband Antibody

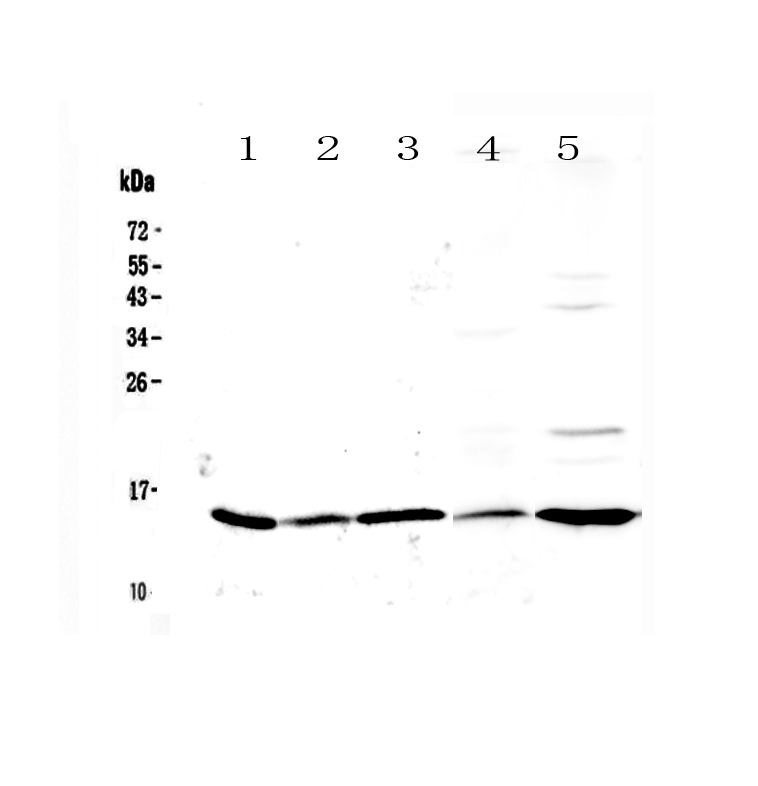

Figure 1. Western blot analysis of Galectin 1 using anti-Galectin 1 antibody (ABO12847). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. Lane 1: rat gaster tissue lysates, Lane 2: rat ovary tissue lysates,Lane 3: rat testis tissue lysates,Lane 4: mouse kidney tissue lysates,Lane 5: human Hela whole cell lysates. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-Galectin 1 antigen affinity purified polyclonal antibody (Catalog # ABO12847) at 0.5 ug/mL overnight at 4â„ƒ, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for Galectin 1 at approximately 15KD. The expected band size for Galectin 1 is at 15KD.
Figure 2. IHC analysis of Galectin 1 using anti-Galectin 1 antibody (ABO12847).Galectin 1 was detected in paraffin-embedded section of mouse kidney tissue. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1ug/ml rabbit anti-Galectin 1 Antibody (ABO12847) overnight at 4â„ƒ. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37â„ƒ. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.
Figure 3. IHC analysis of Galectin 1 using anti-Galectin 1 antibody (ABO12847).Galectin 1 was detected in paraffin-embedded section of mouse small intestine tissue. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1ug/ml rabbit anti-Galectin 1 Antibody (ABO12847) overnight at 4â„ƒ. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37â„ƒ. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.
Figure 4. IHC analysis of Galectin 1 using anti-Galectin 1 antibody (ABO12847).Galectin 1 was detected in paraffin-embedded section of rat kidney tissue. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1ug/ml rabbit anti-Galectin 1 Antibody (ABO12847) overnight at 4â„ƒ. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37â„ƒ. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.
Figure 5. IHC analysis of Galectin 1 using anti-Galectin 1 antibody (ABO12847).Galectin 1 was detected in paraffin-embedded section of rat small intestine tissue. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1ug/ml rabbit anti-Galectin 1 Antibody (ABO12847) overnight at 4â„ƒ. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37â„ƒ. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

产品详情
实验流程
背景知识

Product Information
Application Applications Legend: E=ELISA WB=Western Blotting IHC=Immunohistochemistry IHC-P=Immunohistochemistry (Paraffin) IP=Immunoprecipitation IF=Immunofluorescence IC=Immunochemistry ICC=Immunocytochemistry FC=Flow Cytometry DB=Dot Blot	WB, IHC-P, E
Primary Accession	Lgals1: P11762
Host	Rabbit
Reactivity	Human, Mouse, Rat
Clonality	Polyclonal
Format	Lyophilized
Description	Rabbit IgG polyclonal antibody for Galectin 1 detection. Tested with WB, IHC-P, ELISA(Cap) in Human;Mouse;Rat.
Reconstitution	Add 0.2ml of distilled water will yield a concentration of 500ug/ml.

Additional Information
Application Details	Western blot, 0.1-0.5 µg/ml Immunohistochemistry(Paraffin-embedded Section), 0.5-1 µg/ml ELISA(Cap), 0.1-0.5 µg/ml
Contents	Each vial contains 5mg BSA, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Immunogen	E. coli-derived rat Galectin 1 recombinant protein (Position: A2-E135).
Purification	Immunogen affinity purified.
Cross Reactivity	No cross reactivity with other proteins.
Storage	At -20˚C for one year. After r˚Constitution, at 4˚C for one month. It˚Can also be aliquotted and stored frozen at -20˚C for a longer time. Avoid repeated freezing and thawing.

For Research Use Only. Not For Use In Diagnostic Procedures.

Research Areas

Application Protocols

Provided below are standard protocols that you may find useful for product applications.

Western Blot Protocol

Blocking Peptides Protocol

Dot Blot Protocol

Immunohistochemistry Protocol

Immunofluorescence Protocol

Immunoprecipitation Protocol

Flow Cytomety Protocol

Cell Culture Protocol

BACKGROUND

Galectin-1 is a protein that in humans is encoded by the LGALS1 gene. The galectins are a family of beta-galactoside-binding proteins implicated in modulating cell-cell and cell-matrix interactions. Galectin-1 may act as an autocrine negative growth factor that regulates cell proliferation. Galectin-1 expression in Hodgkin Lymphoma has also been shown to mediate immunosuppression of CD8+ T-cells. It is thought to play a role in creating immune tolerance in pregnancy. It has been found that Galectin-1-mediated production of IL6 may assist in augmenting the innate immune response against NiV. Galectin-1 may also be a significant factor that augments the efficiency of the HIV-1 infection process.
