Anti-Ankyrin erythroid/ANK/ANK1 Antibody Picoband™ (monoclonal, 5H2E8)


  • 1 - Anti-Ankyrin erythroid/ANK/ANK1 Antibody Picoband™ (monoclonal, 5H2E8) ABO16594

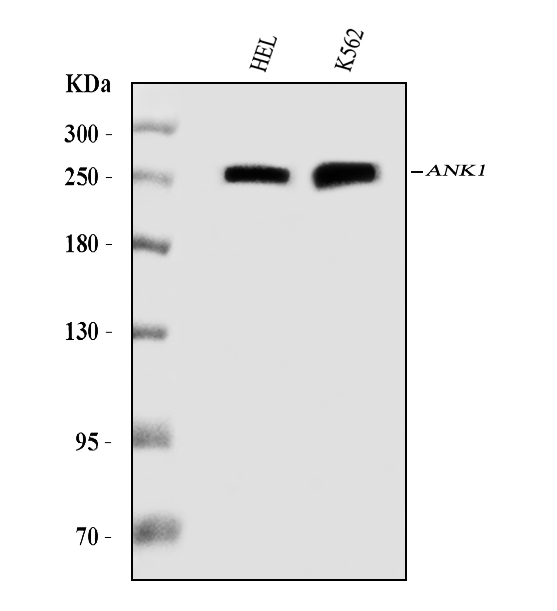

    Figure 1. Western blot analysis of Ankyrin erythroid/ANK/ANK1 using anti-Ankyrin erythroid/ANK/ANK1 antibody (M02716-1).
    Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
    Lane 1: human HEL whole cell lysates,
    Lane 2: human K562 whole cell lysates.
    After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-Ankyrin erythroid/ANK/ANK1 antigen affinity purified monoclonal antibody (Catalog # M02716-1) at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for Ankyrin erythroid/ANK/ANK1 at approximately 206 kDa. The expected band size for Ankyrin erythroid/ANK/ANK1 is at 206 kDa.
  • 1 - Anti-Ankyrin erythroid/ANK/ANK1 Antibody Picoband™ (monoclonal, 5H2E8) ABO16594
    Figure 2. Flow Cytometry analysis of K562 cells using anti-Ankyrin erythroid/ANK/ANK1 antibody (M02716-1).
    Overlay histogram showing K562 cells stained with M02716-1 (Blue line). The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-Ankyrin erythroid/ANK/ANK1 Antibody (M02716-1, 1 µg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126, 5-10 µg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG (1 µg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
  • 产品详情
  • 实验流程
  • 背景知识
Product Information
Application
  • Applications Legend:
  • E=ELISA
  • WB=Western Blotting
  • IHC=Immunohistochemistry
  • IHC-P=Immunohistochemistry (Paraffin)
  • IP=Immunoprecipitation
  • IF=Immunofluorescence
  • IC=Immunochemistry
  • ICC=Immunocytochemistry
  • FC=Flow Cytometry
  • DB=Dot Blot
WB, FC
Primary Accession P16157
Host Mouse
Isotype Mouse IgG2a
Reactivity Human
Clonality Monoclonal
Format Lyophilized
Description Anti-Ankyrin erythroid/ANK/ANK1 Antibody Picoband™ (monoclonal, 5H2E8) . Tested in Flow Cytometry, WB applications. This antibody reacts with Human.
Reconstitution Adding 0.2 ml of distilled water will yield a concentration of 500 µg/ml.
Additional Information
Gene ID 286
Other Names Ankyrin-1, ANK-1, Ankyrin-R, Erythrocyte ankyrin, ANK1 (HGNC:492), ANK
Calculated MW 206265 Da
Application Details Western blot, 0.25-0.5 µg/ml, Human
Flow Cytometry, 1-3 µg/1x10^6 cells, Human
Source Eukaryota
Contents Each vial contains 4 mg Trehalose, 0.9 mg NaCl and 0.2 mg Na2HPO4.
Clone Names Clone: 5H2E8
Immunogen E.coli-derived human Ankyrin erythroid/ANK/ANK1 recombinant protein (Position: N1300-Q1844).
Purification Immunogen affinity purified.
Storage At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.

For Research Use Only. Not For Use In Diagnostic Procedures.

Protein Information
Name ANK1 (HGNC:492)
Synonyms ANK
Function Component of the ankyrin-1 complex, a multiprotein complex involved in the stability and shape of the erythrocyte membrane (PubMed:35835865). Attaches integral membrane proteins to cytoskeletal elements; binds to the erythrocyte membrane protein band 4.2, to Na-K ATPase, to the lymphocyte membrane protein GP85, and to the cytoskeletal proteins fodrin, tubulin, vimentin and desmin. Erythrocyte ankyrins also link spectrin (beta chain) to the cytoplasmic domain of the erythrocytes anion exchange protein; they retain most or all of these binding functions.
Cellular Location [Isoform Er1]: Cytoplasm, cytoskeleton. Note=Probably the other erythrocyte (Er) isoforms, are located near the surface of erythrocytic plasma membrane [Isoform Mu18]: Sarcoplasmic reticulum [Isoform Mu20]: Sarcoplasmic reticulum
Tissue Location Isoform Mu17, isoform Mu18, isoform Mu19 and isoform Mu20 are expressed in skeletal muscle. Isoform Br21 is expressed in brain.
Research Areas

BACKGROUND

Ankyrin 1, erythrocytic, also known as ANK1, is a protein that in humans is encoded by the ANK1 gene. Ankyrins are a family of proteins that link the integral membrane proteins to the underlying spectrin-actin cytoskeleton and play key roles in activities such as cell motility, activation, proliferation, contact and the maintenance of specialized membrane domains. Multiple isoforms of ankyrin with different affinities for various target proteins are expressed in a tissue-specific, developmentally regulated manner. Most ankyrins are typically composed of three structural domains: an amino-terminal domain containing multiple ankyrin repeats; a central region with a highly conserved spectrin binding domain; and a carboxy-terminal regulatory domain which is the least conserved and subject to variation. Ankyrin 1, the prototype of this family, was first discovered in the erythrocytes, but since has also been found in brain and muscles. Mutations in erythrocytic ankyrin 1 have been associated in approximately half of all patients with hereditary spherocytosis. Complex patterns of alternative splicing in the regulatory domain, giving rise to different isoforms of ankyrin 1 have been described. Truncated muscle-specific isoforms of ankyrin 1 resulting from usage of an alternate promoter have also been identified.
