PIK3R1 Antibody

Purified Mouse Monoclonal Antibody

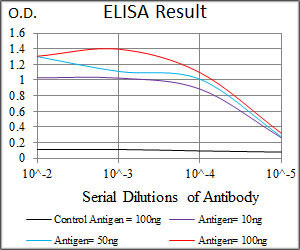

Black line: Control Antigen (100 ng);
Purple line: Antigen(10ng);
Blue line: Antigen (50 ng);
Red line: Antigen (100 ng);
Figure 1: Western blot analysis using PIK3R1 mAb against human PIK3R1 recombinant protein. (Expected MW is 53.4 kDa)
Figure 2: Immunofluorescence analysis of HeLa cells using PIK3R1 mouse mAb (green). Blue: DRAQ5 fluorescent DNA dye. Red: Actin filaments have been labeled with Alexa Fluor-555 phalloidin.
Figure 3: Immunofluorescence analysis of HepG2 cells using PIK3R1 mouse mAb (green). Blue: DRAQ5 fluorescent DNA dye. Red: Actin filaments have been labeled with Alexa Fluor-555 phalloidin.
Figure 4: Flow cytometric analysis of NIH3T3 cells using PIK3R1 mouse mAb (green) and negative control (red).
Figure 5: Immunohistochemical analysis of paraffin-embedded cervical cancer tissues using PIK3R1 mouse mAb with DAB staining.
Figure 6: Immunohistochemical analysis of paraffin-embedded rectum cancer tissues using PIK3R1 mouse mAb with DAB staining.

Product Information
Application Applications Legend: E=ELISA WB=Western Blotting IHC=Immunohistochemistry IHC-P=Immunohistochemistry (Paraffin) IP=Immunoprecipitation IF=Immunofluorescence IC=Immunochemistry ICC=Immunocytochemistry FC=Flow Cytometry DB=Dot Blot	WB, IHC, FC, ICC, E
Primary Accession	P27986
Reactivity	Human, Mouse
Host	Mouse
Clonality	Monoclonal
Clone Names	6G10
Isotype	IgG1
Calculated MW	83598 Da
Description	Phosphatidylinositol 3-kinase phosphorylates the inositol ring of phosphatidylinositol at the 3-prime position. The enzyme comprises a 110 kD catalytic subunit and a regulatory subunit of either 85, 55, or 50 kD. This gene encodes the 85 kD regulatory subunit. Phosphatidylinositol 3-kinase plays an important role in the metabolic actions of insulin, and a mutation in this gene has been associated with insulin resistance. Alternative splicing of this gene results in four transcript variants encoding different isoforms.
Immunogen	Purified recombinant fragment of human PIK3R1 (AA: 159-388) expressed in E. Coli.
Formulation	Purified antibody in PBS with 0.05% sodium azide

Additional Information
Gene ID	5295
Other Names	Phosphatidylinositol 3-kinase regulatory subunit alpha, PI3-kinase regulatory subunit alpha, PI3K regulatory subunit alpha, PtdIns-3-kinase regulatory subunit alpha, Phosphatidylinositol 3-kinase 85 kDa regulatory subunit alpha, PI3-kinase subunit p85-alpha, PtdIns-3-kinase regulatory subunit p85-alpha, PIK3R1, GRB1
Dilution	WB~~1/500 - 1/2000 IHC~~1/200 - 1/1000 FC~~1/200 - 1/400 ICC~~N/A E~~1/10000
Storage	Maintain refrigerated at 2-8°C for up to 6 months. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
Precautions	PIK3R1 Antibody is for research use only and not for use in diagnostic or therapeutic procedures.

For Research Use Only. Not For Use In Diagnostic Procedures.

Protein Information
Name	PIK3R1
Synonyms	GRB1
Function	Binds to activated (phosphorylated) protein-Tyr kinases, through its SH2 domain, and acts as an adapter, mediating the association of the p110 catalytic unit to the plasma membrane. Necessary for the insulin-stimulated increase in glucose uptake and glycogen synthesis in insulin-sensitive tissues. Plays an important role in signaling in response to FGFR1, FGFR2, FGFR3, FGFR4, KITLG/SCF, KIT, PDGFRA and PDGFRB. Likewise, plays a role in ITGB2 signaling (PubMed:17626883, PubMed:19805105, PubMed:7518429). Modulates the cellular response to ER stress by promoting nuclear translocation of XBP1 isoform 2 in a ER stress- and/or insulin-dependent manner during metabolic overloading in the liver and hence plays a role in glucose tolerance improvement (PubMed:20348923).
Cellular Location	Cytoplasm.
Tissue Location	Isoform 2 is expressed in skeletal muscle and brain, and at lower levels in kidney and cardiac muscle. Isoform 2 and isoform 4 are present in skeletal muscle (at protein level)
