KIR3DL1

Purified Mouse Monoclonal Antibody

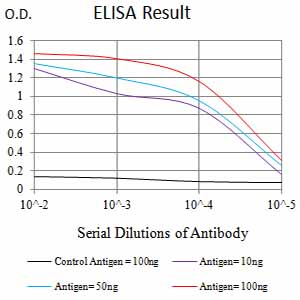

Figure 1:Black line: Control Antigen (100 ng);Purple line: Antigen (10ng); Blue line: Antigen (50 ng); Red line:Antigen (100 ng)
Figure 2:Western blot analysis using KIR3DL1 mAb against human KIR3DL1 (AA: extra 22-340) recombinant protein. (Expected MW is 65 kDa)
Figure 3:Western blot analysis using KIR3DL1 mouse mAb against A431 (1), Raji (2), SPC-A-1 (3), K562 (4), HEK293 (5), U937 (6), and C6 (7) cell lysate.
Figure 4:Flow cytometric analysis of Jurkat cells using KIR3DL1 mouse mAb (green) and negative control (red).

Product Information
Application Applications Legend: E=ELISA WB=Western Blotting IHC=Immunohistochemistry IHC-P=Immunohistochemistry (Paraffin) IP=Immunoprecipitation IF=Immunofluorescence IC=Immunochemistry ICC=Immunocytochemistry FC=Flow Cytometry DB=Dot Blot	WB, IHC, ICC, E
Primary Accession	P43629
Reactivity	Human, Rat
Host	Mouse
Clonality	Monoclonal
Clone Names	6D9A4
Isotype	Mouse IgG2b
Calculated MW	49098 Da
Immunogen	Purified recombinant fragment of human KIR3DL1 (AA: extra 22-340) expressed in HEK293 cells.
Formulation	Purified antibody in PBS with 0.05% sodium azide

Additional Information
Gene ID	3811
Other Names	KIR; NKB1; NKAT3; NKB1B; NKAT-3; CD158E1; KIR3DL1/S1
Dilution	WB~~ 1/500 - 1/2000 IHC~~1:100~500 ICC~~N/A E~~ 1/10000
Storage	Maintain refrigerated at 2-8°C for up to 6 months. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
Precautions	KIR3DL1 is for research use only and not for use in diagnostic or therapeutic procedures.

For Research Use Only. Not For Use In Diagnostic Procedures.

Protein Information
Name	KIR3DL1 (HGNC:6338)
Synonyms	CD158E, NKAT3, NKB1
Function	Receptor on natural killer (NK) cells for HLA Bw4 allele. Inhibits the activity of NK cells thus preventing cell lysis.
Cellular Location	Cell membrane; Single-pass type I membrane protein

Research Areas

Application Protocols

Provided below are standard protocols that you may find useful for product applications.
